Spotlight Product: PCE 60A UL Plugs and Connectors

Reliable High-Current Connectivity for Modern Data Centres

As data centres continue to expand in both scale and power demand, the need for dependable high-current connectivity has become increasingly important. From modular UPS systems and PDUs through to cooling infrastructure, temporary commissioning power and backup generation, every connection point within a critical power environment must deliver absolute reliability.

This is where PCE IEC 60309 Series II connectors stand out.

Manufactured in Austria and designed for demanding industrial environments, PCE’s UL1682 approved pin-and-sleeve devices combine robust construction, high safety standards and long-term durability, making them ideally suited to modern data centre and critical infrastructure applications.

Built for Critical Power Environments

While the 60A range is particularly suited to high-current applications within data centres and critical infrastructure, the wider PCE Series II family also includes 20A and 30A devices, offering a complete connectivity solution across an entire installation.

This allows contractors, panel builders and facility managers to maintain consistency across:

• Main power distribution
• Auxiliary systems
• Cooling infrastructure
• Temporary power supplies
• Commissioning equipment
• Portable maintenance systems

Whether supplying major power distribution equipment via 60A connectors or supporting smaller ancillary systems with 20A and 30A devices, the range delivers the same industrial-grade reliability and build quality throughout.

Why 60A Connectivity Matters in Data Centres

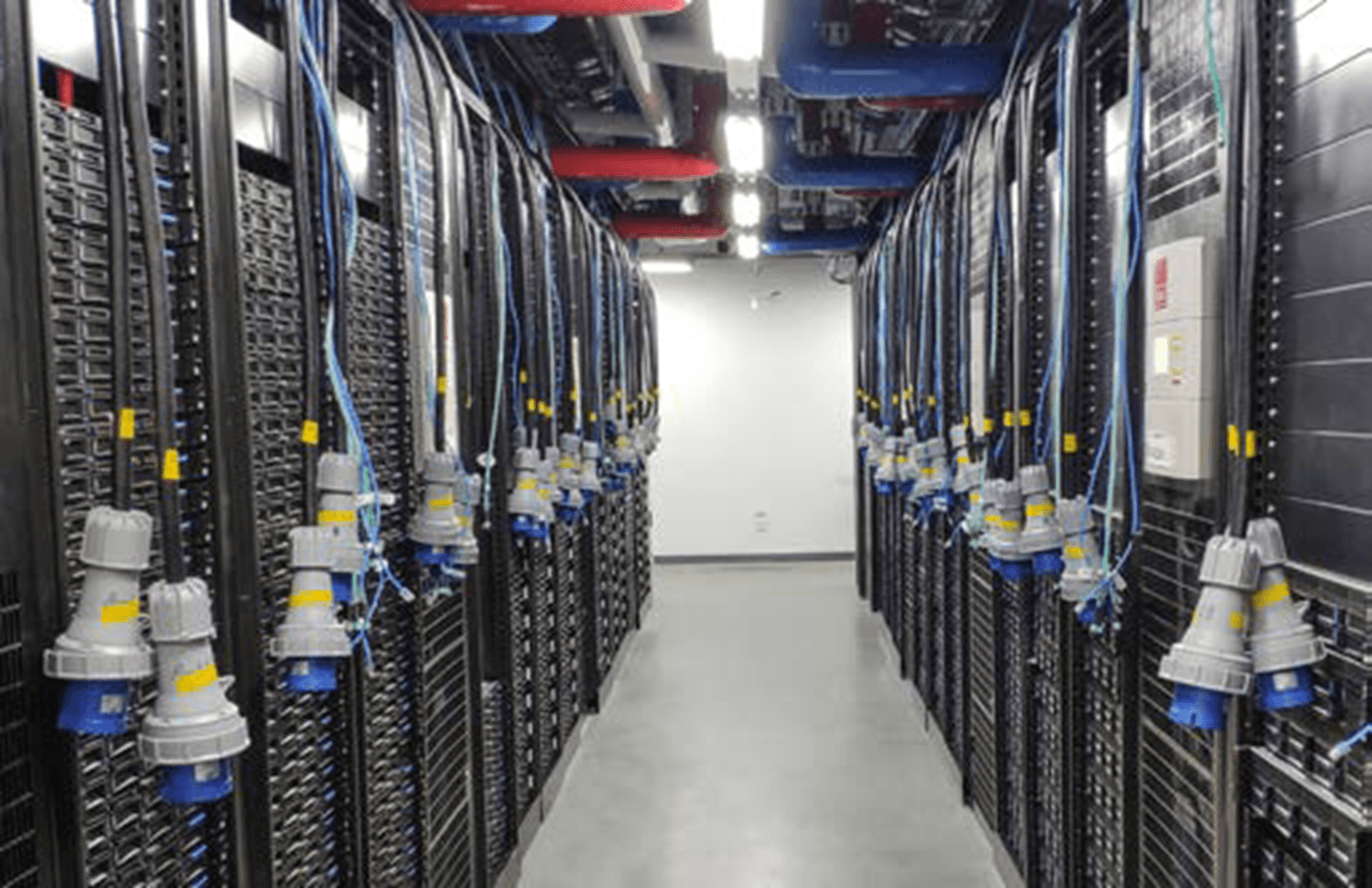

Modern data centres rely increasingly on modular infrastructure. Temporary power systems, prefabricated containerised data halls and rapidly deployable UPS systems all benefit from high-current connectors that allow fast installation, maintenance and replacement without extensive hard wiring.

PCE’s 60A Series II devices are particularly well suited for:

• Modular UPS connections
• High-capacity PDUs
• Temporary commissioning supplies
• Backup generator interfaces
• Cooling and HVAC infrastructure
• Edge data centre deployments
• Containerised and mobile data centres

The catalogue itself highlights data centres and IT infrastructure as a key application area, particularly where modular equipment requires high-current removable connectors and where PDUs require pin-and-sleeve inlets.

Designed for Safety and Reliability

One of the major advantages of IEC 60309 pin-and-sleeve technology is the built-in safety offered by the standardised design.

PCE devices feature:

• Ground-first / break-last contact arrangement
• Polarised pin configuration
• Mechanical keying by voltage and phase
• Dead-front construction
• Consistent contact pressure for reduced overheating and arcing

These design principles help prevent incorrect connections while improving long-term electrical reliability under continuous load conditions.

For data centres operating around the clock, this additional level of protection can play an important role in reducing risk during installation, maintenance and equipment replacement.

Engineered for Long Service Life

Frequent connection and disconnection cycles are common during commissioning, infrastructure upgrades and temporary deployments. PCE’s 60A devices are designed specifically to withstand this type of demanding use.

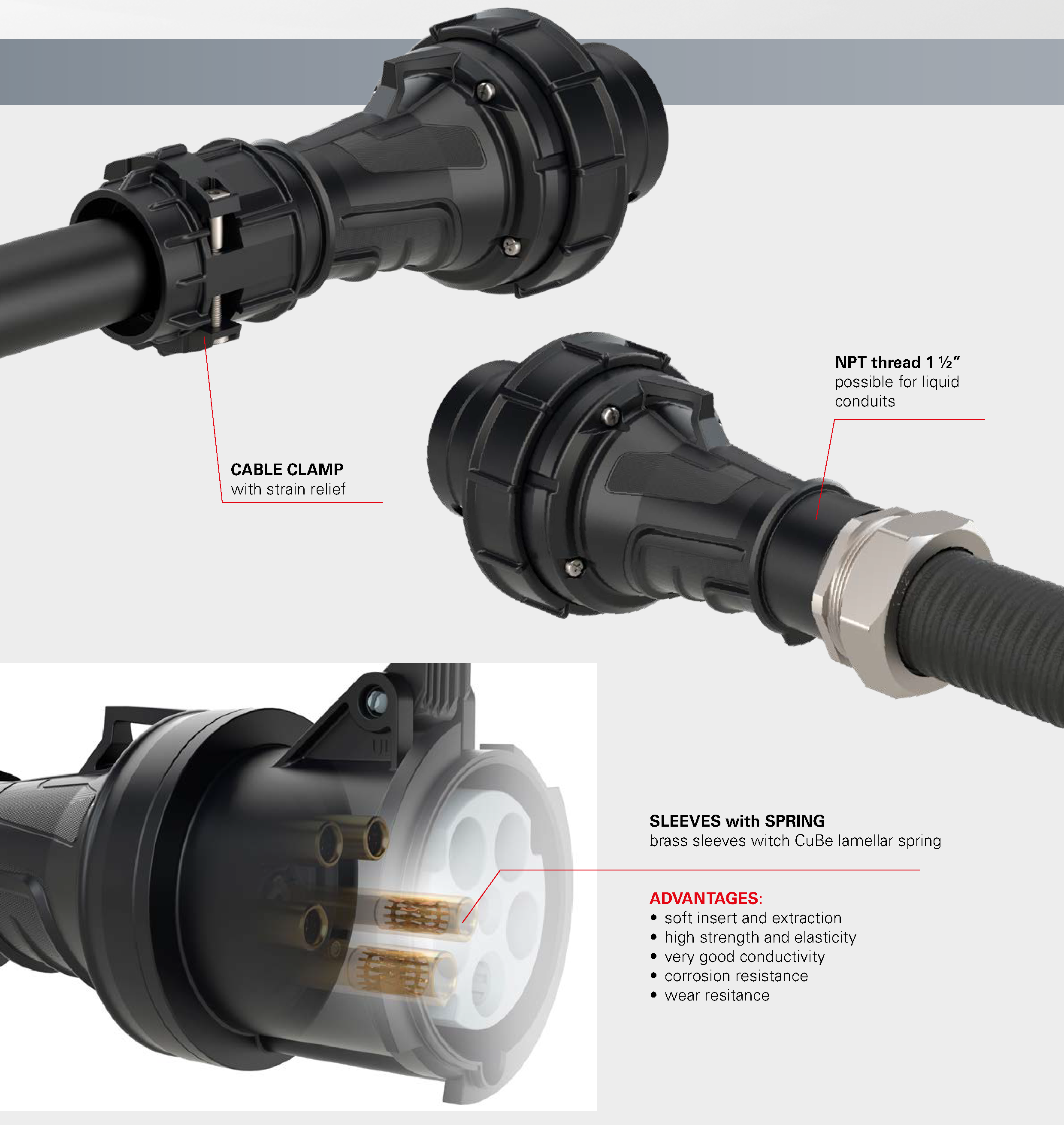

The spring-assisted brass sleeve system provides:

• Smooth insertion and extraction
• High conductivity
• Excellent corrosion resistance
• Reduced wear over time
• Reliable contact pressure

Combined with rugged polyamide housings, external strain relief systems and industrial-grade materials, this helps deliver long operational life with reduced maintenance requirements.

A Complete IEC 60309 Solution

Beyond the 60A products, the PCE Series II range includes:

• Plugs
• Connectors
• Flange receptacles
• Wall-mounted receptacles
• Inlets

Available in both IP44 splashproof and IP67 watertight versions across 20A, 30A and IP67/69K in 60A ratings.

This makes the range suitable not only for data centres, but also for:

• Industrial manufacturing
• Entertainment and events
• Marine applications
• Construction sites
• Heavy-duty outdoor installations
• Commercial facilities

PCE’s focus on quality, reliability and fast delivery has helped establish the company as a global leader in industrial plugs and sockets, with products trusted across demanding industries worldwide.

Supporting Modern Power Infrastructure

With the continued growth of AI processing, cloud computing and high-density server environments, electrical infrastructure within data centres is under greater pressure than ever before.

Reliable power connectivity is no longer simply about supplying electricity — it is about maintaining uptime, supporting scalability and enabling rapid infrastructure deployment.

PCE’s IEC 60309 Series II range offers a proven, industrial-grade solution designed for exactly these types of demanding environments, from smaller auxiliary supplies through to high-current 60A critical power connections.

For contractors, panel builders and infrastructure specialists working within mission-critical applications, PCE continues to deliver the quality, reliability and engineering expertise expected from one of Europe’s leading industrial connector manufacturers.
