Crash Frame Mains Distribution Assemblies
03/04/2024
Overview:
In response to the growing demand for robust and reliable power distribution systems, our client sought a solution that combines durability, functionality, and enhanced safety features. The Zintec Steel Enclosure with a crash frame, accompanied by a meticulously designed power distribution system, emerged as the ideal choice. This case study aims to highlight the key features, functionality, and robustness of this cutting-edge product, tailored for the discerning needs of product specifiers and procurement specialists.
Functionality:

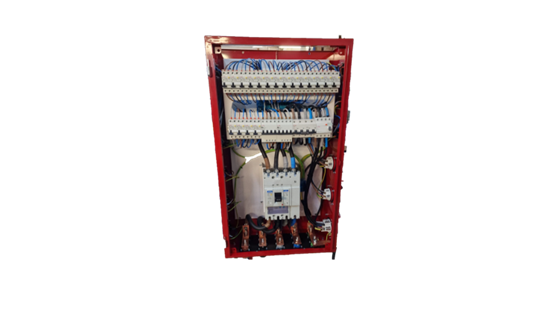

The Zintec Steel Enclosure is engineered to provide a comprehensive and flexible power distribution solution. Its incoming section features a set of powerlocks shielded by a 400A 4P MCCB (Molded Case Circuit Breaker) along with powerlock through sockets, ensuring a secure and efficient power inlet. The outgoing section is equipped with a range of sockets catering to diverse power requirements, enhancing adaptability for various applications.
Key Features:

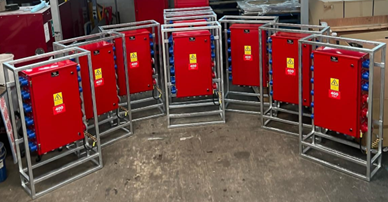

Crash Frame with Earth Bar and Earth Stud:
The enclosure is equipped with a crash frame, offering enhanced protection and stability. The inclusion of an earth bar and earth stud ensures effective grounding, minimising the risk of electrical faults and ensuring safety compliance.
Powerlocks and MCCB Protection:
The incoming power section is fortified with a set of powerlocks, providing a robust connection. The 400A 4P MCCB adds an extra layer of protection, safeguarding the system against overcurrents and short circuits.
Multiple Socket Types:

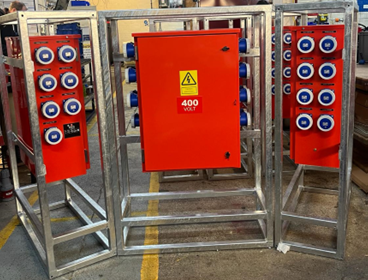

The outgoing section boasts 18x 32A 230V 3-pin IP44 sockets, each protected by a 32A 2P 30mA C curve Type A RCBO. Additionally, there are 2x 63A 400V 5-pin IP67 sockets and 1x 125A 400V 5-pin IP67 socket, each with their dedicated protection mechanisms, showcasing versatility and adaptability to various power requirements.
Individual Protection Devices:
Each 32A socket is safeguarded by a 32A 2P 30mA C curve Type A RCBO, offering individual protection and fault detection. The 63A sockets are protected by a 63A 4P 30mA C curve RCBO, and the 125A socket is fortified with a 125A 4P C curve MCB and a 4P 30mA Type A RCD, ensuring tailored protection for each power outlet.
Robustness:
The Zintec Steel Enclosure is constructed with high-quality materials and adheres to stringent manufacturing standards. The crash frame enhances its durability, providing protection against physical impacts, making it suitable for challenging environments. The inclusion of comprehensive protection devices ensures the longevity and reliability of the power distribution system.
Conclusion:
The Zintec Steel Enclosure, coupled with its advanced power distribution system, stands as a testament to innovation, functionality, and robustness. Tailored to meet the specific needs of product specifiers and procurement specialists, this solution offers a reliable and adaptable power distribution solution for various industrial applications. With its exceptional features and stringent safety measures, the Zintec Steel Enclosure is a forward-thinking choice for those seeking a dependable and long-lasting power distribution solution
