PCE measurement and Diagnostic tools to save you time.

PCE has recently launched a new current measuring plug. The current measurement plug, available in 16a and 32a and the diagnostic plug with LED display. Two important components for easy and safe power management.

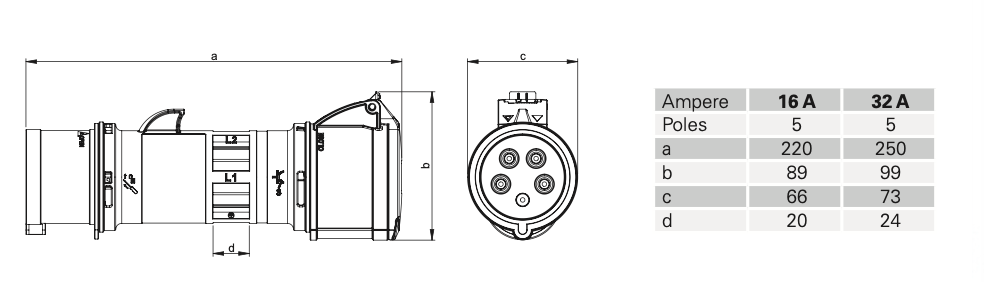

The CEE 16a and 32a current measurer

The CEE 16a and 32a current measurer with IP44 (splashproof) rating makes measuring individual wires safe and simple.

The current measuring plugs have an easy-access connector that fits a standard measuring clamp (clamp ammeter). Available with and without integrated rotating fields, making it really simple to measure each phase (L1/L2/L3 with a clamp meter (not included)).

Both the 16a 3P+N+E 400v and 32a 3P+N+E 400v rotating fields are available with LED light options. Rotation clockwise (green), rotation counterclockwise (red) and phase missing (no light).

The 32a current measuring plug does offer an additional N and PE separate with a Standard clamp meter. This practical helper is a perfect fit for any electrical equipment, any industry, business or construction site.

The advantages of the new PCE current measuring plug include:

●      Safe - plugs, enclosures and connectors do not have to be opened in order to expose the wire

●      Simple - handy and easy to operate by comfortable plug-in operation (adaptor function)

●      Fast - fast current measurement or symmetrical diagnosis for the phase loads (e.g. in combination with a distro box)

●      Universal - current measurement with standard clamp meter* and operational rotation field checkers on the unit.

* temporary use only

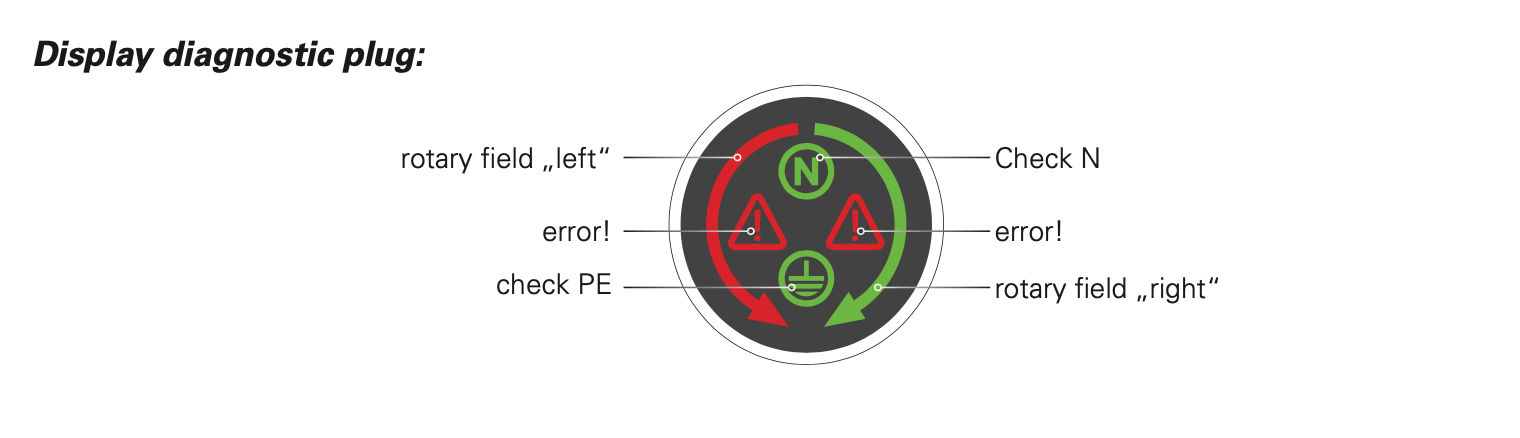

The CEE Diagnostic Plug with LED Display

This CEE Diagnostic Plug is practical and suitable for all electronics in any industry. The multiple display and diagnostic functions show: Rotary field check, phase conductor check, neutral conductor check and protective earth conductor check.

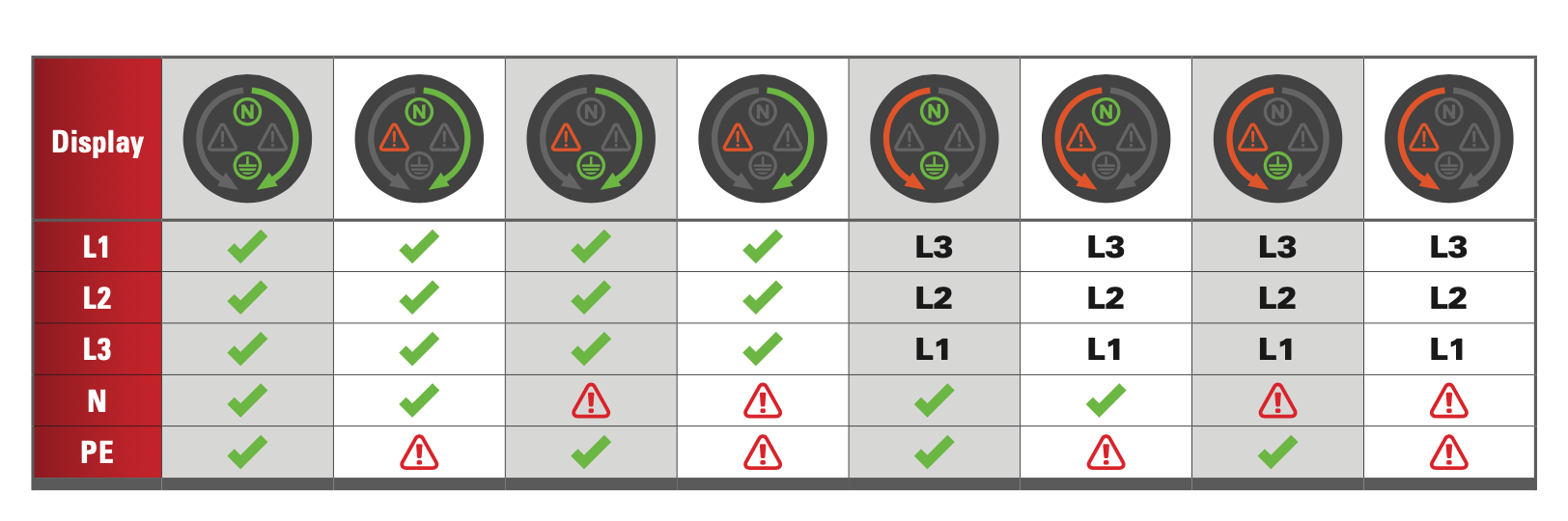

If both the symbols for "rotating field left" and "rotating field right" are illuminated at the same time and if any other symbols are illuminated as well, it means there is an error.

A qualified electrician should check the error. This diagnostic plug is suitable for a temporary testing period only, it’s not designed for permanent use.

Whether you are performing maintenance or diagnosing faulting equipment the PCE CEE current measurement range can pinpoint faults and malfunctions. Control, protect, monitor and manage power safely and quickly across all your devices. This range is suitable for a wide range of devices and circumstances including anything from professional music amplifiers (speakers), to construction site machinery and household items.
